Circular Motion (Kinematics, Dynamics)

1. Find the linear speed v of the Earth during its orbital motion. The average radius of the Earth's orbit is R = 1.5 × 10 8 km.

Answer

v 30 km/s.

2. An airplane propeller with a radius of 1.5 m rotates during landing with a frequency of 2000 min 1 . The landing speed of the airplane relative to the Earth is 162 km/h. Determine the speed of a point on the tip of the propeller. What is the trajectory of motion of this point?

Answer

v 316 m/s; the point describes a helical line with a pitch h 1.35 m.

3. A disk of radius R rolls without slipping with a constant speed v . Find the geometric locus of points on the disk that currently have a speed v .

Answer

The velocity v at this moment is possessed by points lying on an arc of radius R , whose center is at the point of contact between the disk and the plane (instantaneous center of rotation).

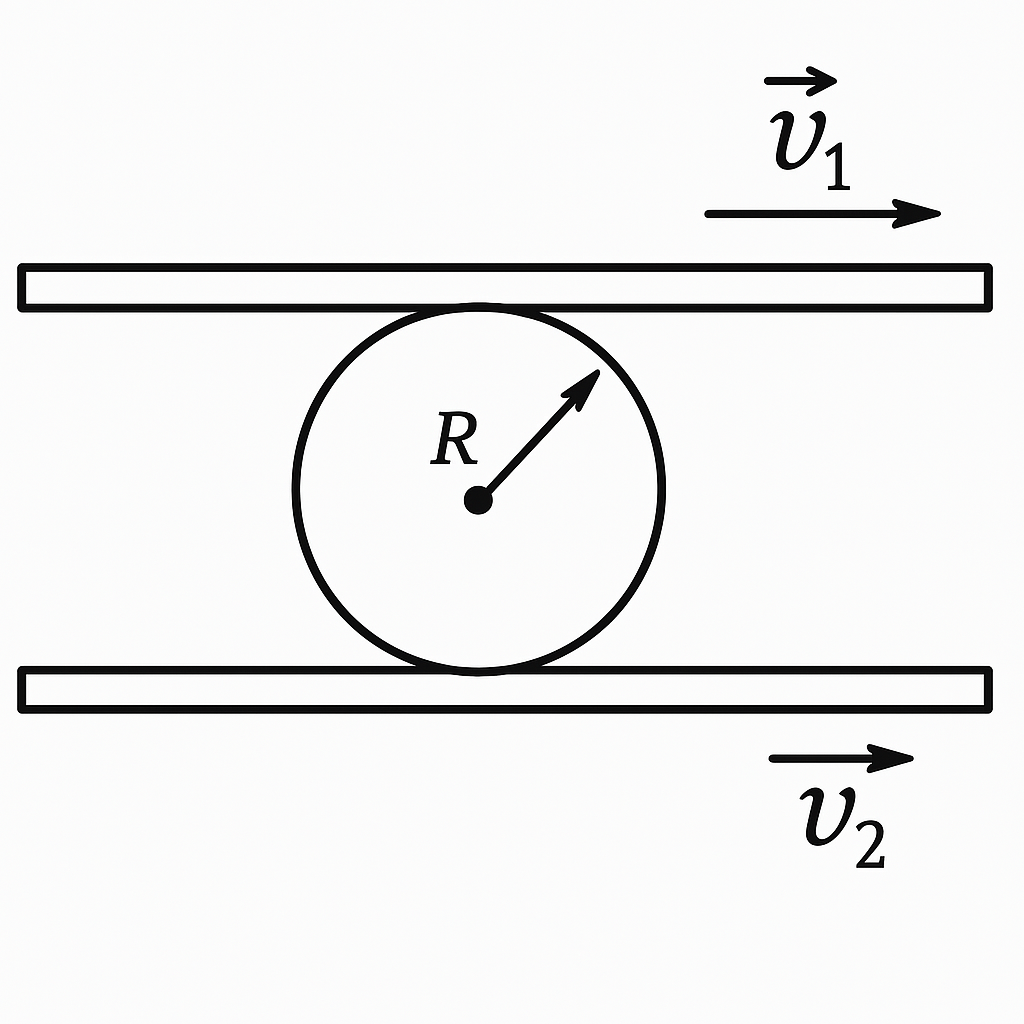

4. A cylindrical roller of radius R is placed between two parallel rails. The rails move in the same direction with speeds v 1 and v 2 (see figure). Determine the angular velocity of rotation of the roller and the speed of its center, assuming no slipping. Solve the problem for the case where the speeds of the rails are directed in opposite directions. Description

Solution

Let the roller move translationally with velocity v and rotate about its axis with angular velocity ω . The linear velocity of points on the roller in the coordinate system associated with its axis is ω R . The points of contact between the roller and the racks also have this velocity. Since there is no slipping, this is also the velocity of the racks. In the coordinate system associated with the Earth, the velocities of the racks are equal to the sum of their velocities relative to the cylinder axis and the velocity of the cylinder axis relative to the Earth. Therefore, v 1 = v + ω R , v 2 = v ω R . From this, v = 1 2 ( v 1 + v 2 ) , ω = 1 2 R ( v 1 v 2 ) . For the case where the rack velocities are directed in opposite directions ( v 1 = v + ω R , v 2 = ω R v ), we get: v = 1 2 ( v 1 v 2 ) ; ω = v 1 + v 2 2 R .

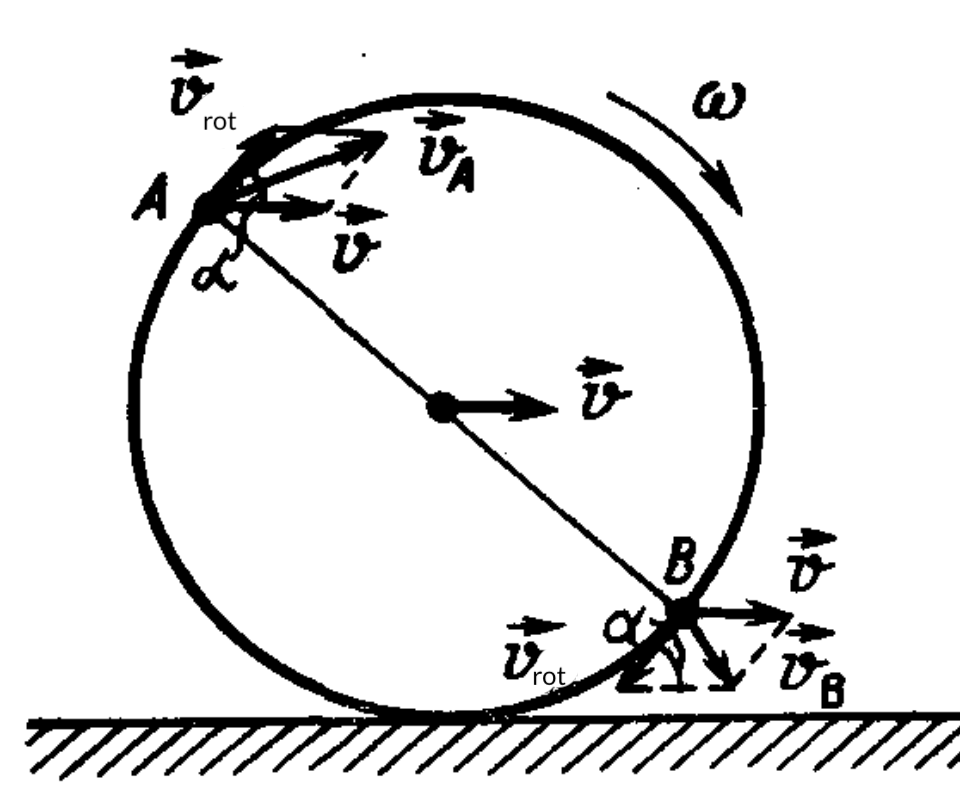

5. A hoop of radius R rolls without slipping along a horizontal plane with a constant speed v c . What are the speeds and accelerations of various points on the hoop relative to the Earth? Express the speed as a function of the angle between the vertical and the line drawn between the point of contact of the hoop with the plane and the given point on the hoop.

Answer

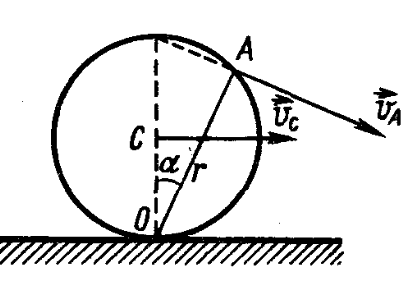

v A = 2 v c cos α . The accelerations of all points on the rim are centripetal and equal to a c p = v c 2 / R .

Solution

The angular velocities of rotation of all points on the rim relative to the axis passing through the point of contact of the hoop with the plane (instantaneous center of rotation) are identical and equal to ω = v c / R . The linear velocity of point A is v A = ω r = ω ( 2 R cos α ) = v c R 2 R cos α = 2 v c cos α and is perpendicular to OA (see figure). Since the translational motion of the hoop is uniform, its points only have centripetal acceleration. This becomes obvious when considering the motion of the hoop in an inertial frame of reference moving with velocity v c . Description

6. A car moves with a speed v = 60 km/h. With what frequency n do its wheels rotate if they roll on the highway without slipping, and the outer diameter of the tires is d = 60 cm? Find the centripetal acceleration a c p of the outer layer of rubber on its tires.

Answer

n 8.84  s 1 ;

a c p 926  m/s 2 (this acceleration is 94.4 times greater than g ).

7. A thin-walled cylinder, rotating with speed ω 0 about its axis, is placed on a horizontal plane. What will be the speed of the cylinder's axis when the slipping of the cylinder relative to the plane stops?

Answer

v = v 0 / 2 .

Solution

1st method. When slipping, a constant friction force acts on the cylinder from the plane, which accelerates its translational motion and decelerates its rotational motion. After time t , the translational velocity will be v = a t , and the linear velocity of rotational motion relative to the cylinder axis will be v r = v 0 a t (since the cylinder is thin-walled, all elementary masses have the same acceleration a relative to the cylinder axis, equal in magnitude to the acceleration of the translational motion).

The velocity of the point on the cylinder touching the plane is equal to the difference in velocities v r v . Slipping will stop when this velocity becomes zero:
v r v = ( v 0 a t ) a t = 0 ,
whence a t = v 0 / 2 . Thus, the translational velocity (velocity of the cylinder axis) at this moment will be v 0 / 2 and will not change further.

2nd method. While slipping, the cylinder performs work against the friction force F applied to it: A = F S s l ,
where S s l is the path traveled by the point (more precisely, the line) of application of the friction force on the cylinder surface during its sliding on the plane over time t : from the moment of contact, when the sliding velocity v s l = v 0 , until the moment slipping stops ( v sl = 0 ). Since the motion is uniformly accelerated, the average sliding velocity is v 0 / 2 . Thus,
A = F S sl = F v 0 t 2 .
According to the work-energy theorem, the work A equals the decrease in the kinetic energy of the cylinder:
m v 0 2 2 ( m v 2 2 ( trans ) + m v 2 2 ( rot ) ) = F v 0 t 2
(cylinder is thin-walled, therefore T t r a n s = T r o t , see problem 50). The friction force F , which brakes the cylinder's rotation to velocity v over time t , simultaneously imparts translational motion with the same velocity v . Writing Newton's second law for the translational motion in impulse form F t = m v and substituting F t with m v in equation (1), we obtain an equation from which we find v = v 0 / 2 .

8. Does the resultant of all forces applied to a body moving uniformly in a circle perform work?

Answer

No. This force, according to the problem statement, ensures the uniform rotation of the body, is a constant magnitude centripetal force, which at each moment in time is directed perpendicular to the displacement of the body and does no work.

9. A load of mass m can slide without friction along a horizontal rod, which rotates around a vertical axis passing through one of its ends. The load is connected to this end of the rod by a spring with spring constant k . At what angular velocity ω will the spring stretch by 50% of its original length?

Answer

ω = 1 3 k m .

Solution

The centripetal acceleration a cp = ω 2 ( l 0 + Δ l ) = 1.5 l 0 ω 2 ( l 0 is the initial length of the spring; Δ l is its extension) is imparted to the mass by the tension force of the spring, which, according to Hooke's law, is F = k Δ l = 0.5 l 0 k . Therefore, 1.5 m ω 2 l 0 = 0.5 l 0 k . Hence ω = 1 3 k m .

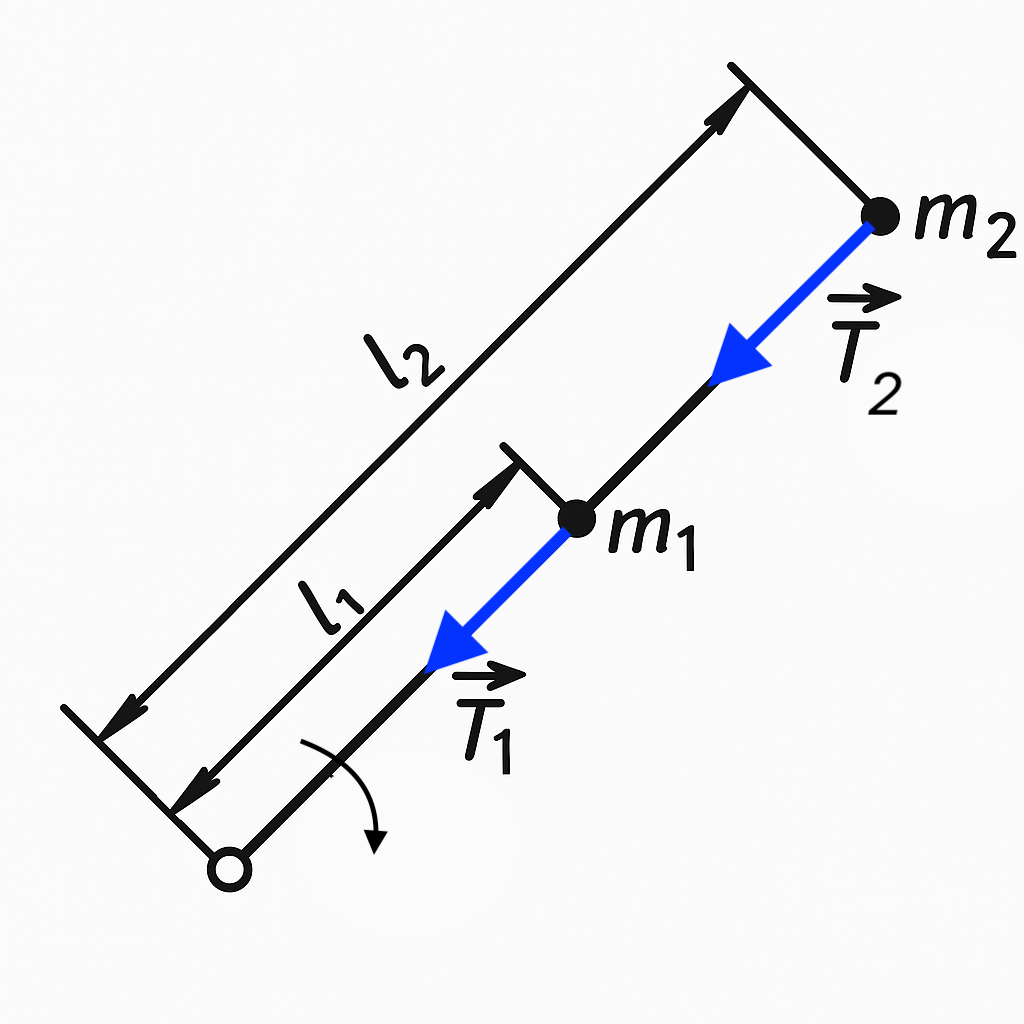

10. Two point masses m 1 and m 2 are attached to strings and are located on a perfectly smooth table. The distances from them to the fixed end of the string are l 1 and l 2 respectively (see figure). The system rotates in a horizontal plane around the axis passing through the fixed end, with an angular velocity ω . Find the tension forces in the sections of the string T 1 and T 2 . Description

Answer

T 1 = ( m 1 l 1 + m 2 l 2 ) ω 2 ;

T 2 = m 2 ω 2 l 2 .



Hint

The force T 2 imparts centripetal acceleration to the outermost mass; the force ( T 1 T 2 ) imparts it to the other mass (see the following figure). Description

11. A person sits on the edge of a circular horizontal platform of radius R = 4 m. With what frequency n must the platform rotate around a vertical axis so that the person cannot stay on it with a coefficient of friction k = 0.27 ?

Answer

n = 6.75  min 1 .

Solution

A person cannot stay on the platform if the maximum possible static friction force with the platform is insufficient to provide the necessary centripetal acceleration, i.e., F f r = k m g < m ω 2 R or n = ω / ( 2 π ) > 1 2 π k g / R .

12. A body of mass m is on a horizontal disk at a distance r from the axis. The disk begins to rotate with a small acceleration. Construct a graph of the dependence of the radial component of the friction force acting on the body on the angular velocity of the disk's rotation. At what value of the angular velocity will the body begin to slide?

Answer

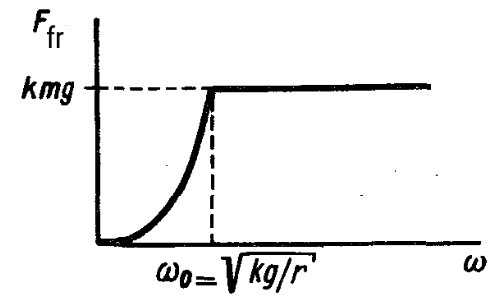

See the following figure. Description

Hint

Before the body starts sliding, the friction force provides it with centripetal acceleration a = ω 2 r . Therefore, considering the smallness of the tangential acceleration according to the condition, F f r m ω 2 r k m g . The body starts sliding at ω = ω 0 , such that F cp = k m g , i.e., when ω 0 2 r = k g .

13. A stone of mass m = 0.5 kg, tied to a rope of length l = 50 cm, rotates in a vertical plane. The tension force in the rope when the stone passes the lowest point of the circle is T = 44 N. To what height h above the lowest point of the circle will the stone rise if the rope is cut at the moment when its velocity is directed vertically upwards?

Answer

h = l ( T m g ) / ( 2 m g ) 2.0 m.

Hint

The kinetic energy of the stone at the lowest point of the circle completely converts into its potential energy during the ascent: m v 2 / 2 = m g h , where h is the height of ascent above the lowest point of the circle. Further, write the equation of dynamics of rotational motion for the moment of passing the lowest point m v 2 / l = T m g and solve both equations together to find the answer.

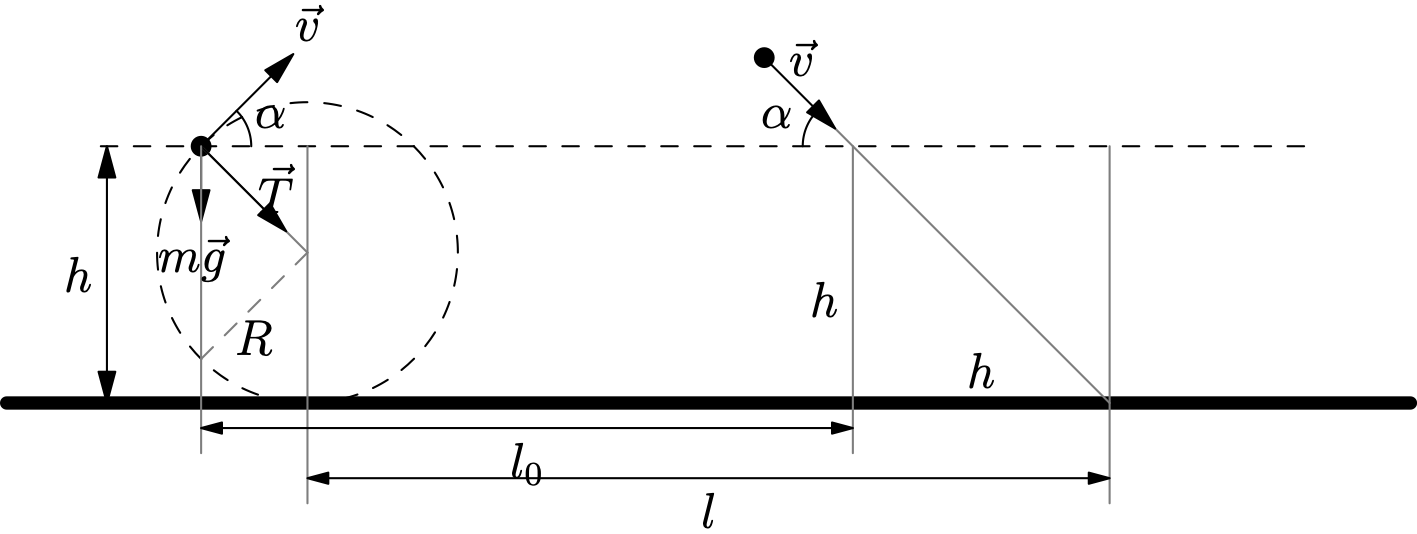

14. An athlete throws a hammer (a weight on a cable) a distance l = 70 m along a trajectory providing maximum range. What force T acts on the athlete's hands at the moment of release? The mass of the hammer is m = 5 kg. Assume the athlete spins the hammer in a vertical circle of radius R = 1.5 m. Neglect air resistance.

Answer

T = m g [ l R ( 1 + 2 2 ) ] 2205 N.

Hint

The flight distance l will be maximum if the hammer's velocity is directed at an angle α = 45 to the horizontal. In this case (see problem 63 in Chapter: Kinematics) l 0 = v 0 2 / g , where l 0 is the flight distance when the points of takeoff and landing are at the same height above the Earth's surface. In our case (see figure) l 0 = l R . Description

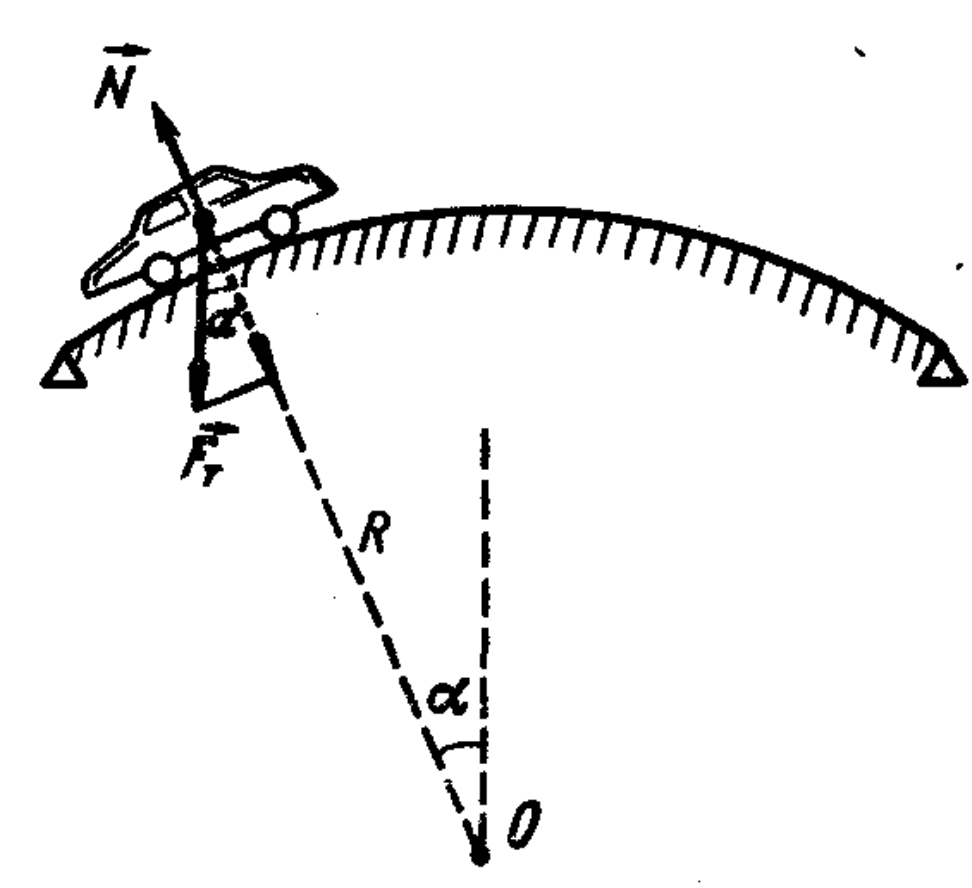

15. A car of mass M = 3 × 10 3 kg moves with a constant speed v = 36 km/h: a) over a horizontal bridge; b) over a convex bridge; c) over a concave bridge. The radius of curvature of the bridge in the last two cases is R = 60 m. With what force does the car press on the bridge (in the last two cases) at the moment when the line connecting the center of curvature of the bridge with the car makes an angle α = 10 with the vertical?

Answer

a) F 1 = m g 29400 N;

b) F 2 = m g ( cos α v 2 g R ) 24000 N;

c) F 3 = m g ( cos α + v 2 g R ) 34000 N.

At the moment the car passes the middle of the bridge, F 2 = 24400 N; F 3 = 34400 N.

Hint

Two forces act on the car: the force of gravity F t = m g and the normal reaction force of the bridge N , which, according to Newton's third law, is equal in magnitude to the force F of the car's pressure on the bridge. Along the curved bridge, the car moves with centripetal acceleration, imparted to it by the resultant of the force N and the radial component of the gravity force, equal to m g cos α (see figure). In accordance with Newton's second law, one can write m v 2 / R = m g cos α N 2 for a convex bridge and m v 2 / R = N 3 m g cos α for a concave bridge. Description

16. A car of mass m = 2 t moves over a convex bridge with radius of curvature R = 90 m at a speed v = 54 km/h. At a point on the bridge, the direction to which from the center of curvature makes an angle α with the direction to the top of the bridge, the car exerts a force F = 14400 N. Determine the angle α .

Answer

α = arccos ( F m g + v 2 g R ) 8.2 .

17. A ball of mass m = 100 g is suspended on a string of length l = 1 m. The ball was spun so that it began to move in a circle in a horizontal plane. In doing so, the angle formed by the string with the vertical is α = 60 . Determine the total work done in spinning the ball.

Answer

A = m g l ( 1 + 1 2 tan α sin α cos α ) 1.23 J.

Hint

The work goes into increasing the potential and kinetic energy. The speed of the ball is found from the condition m v 2 / ( l sin α ) = m g tan α , and h = l ( 1 cos α ) .

18. What is the maximum speed at which a car can move on a turn with a radius of curvature R = 150 m, so that it does not skid, if the coefficient of sliding friction of the tires on the road is k = 0.42 ?

Answer

v = k g R 89 km/h.

Hint

See problem 11.

19. 1. What must be the maximum coefficient of sliding friction k between the tires of a car and asphalt for the car to be able to negotiate a curve of radius R = 200 m at a speed v = 100 km/h?

  1. A car with all driving wheels, starting from rest, uniformly gains speed while moving along a horizontal section of road representing an arc of a circle α = 30 with radius R = 100 m. What is the maximum speed at which the car can exit onto the straight section of the path? The coefficient of friction between the wheels and the ground is k = 0.3 .
Answer

1. k = v 2 / ( g R ) 0.4 .

  1. v = 2 k g R α 1 + 4 α 2 14.5 m/s.
Hint and Solution

The acceleration a of the car is composed of the constant tangential acceleration a t , which provides the car's acceleration, and the centripetal acceleration a c p = v 2 / R ( v is the car's speed). Therefore
a = a t 2 + v 4 R 2 .
The external force providing acceleration to the car is the friction force of the wheels on the road. Since the friction force cannot exceed k m g ( m is the mass of the car), the maximum acceleration a at the moment the car transitions to the horizontal section of the road cannot be greater than k g :
a t 2 + v 4 R 2 = k g .
Since
v = 2 a t l
( l = R α is the path traveled by the car; α = π / 6 ), then
a t = v 2 2 l = v 2 2 R α ,
and after substitution we get
v 2 R 1 4 α 2 + 1 = k g .
Hence v = \frac{\sqrt{2kgR\alpha}}{\sqrt{1 + 4\alpha^2}}$.

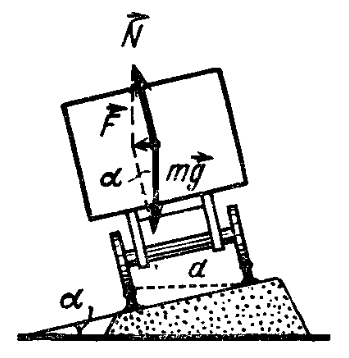

20. A train moves along a curve of radius $R = 800$ m with a speed $v = 72$ km/h. Determine how much higher the outer rail must be than the inner rail so that no lateral force arises on the wheels. The distance between the rails horizontally is taken as $d = 1.5$ m.

Answer

$\Delta h \approx 7.65$ cm.

Hint

The resultant force $\vec{F}$ of the wagon's weight $m\vec{g}$ and the reaction force of the rails $\vec{N}$ imparts centripetal acceleration $a_{cp}$ to the wagon;m a_{\text{cp}} = m\vec{g} + \vec{N};the resultant is directed horizontally (since its direction must coincide with the direction of the train's acceleration) and is equal to $mg \tan \alpha$ (see figure):mv^2/R = mg \tan \alpha.$ Hence $\tan \alpha = \frac{v^2}{gR}.$ The upper rail exceeds the lower one by the amount $\Delta h = d \tan \alpha = d v^2/(gR). < / p >< u l >< l i > I n t h i s s e c t i o n , t h e d i m e n s i o n s o f t h e b o d i e s a r e c o n s i d e r e d m u c h s m a l l e r t h a n t h e r a d i u s o f r o t a t i o n , i . e . , t h e e n t i r e m a s s o f t h e b o d y i s c o n s i d e r e d c o n c e n t r a t e d a t o n e p o i n t i t s c e n t e r o f m a s s . < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 349 / 358 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 < i > \cot \alpha = N/F{fr} = mg / (mv^2/R) = gR/v^2. < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 368 / 275 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 F_{\text{fr.max}} = kN = kmg,$
meaning the motorcyclist's speed cannot be greater than some limiting value, determined by this maximum possible value of the friction force:
$mv_{\text{max}}^2/R = kmg.$
Hence $v_{\text{max}} = \sqrt{kgR}.$

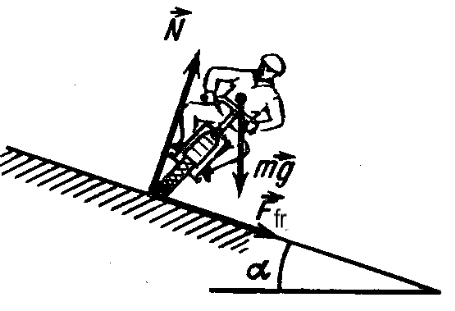

  • The angle of inclination of the motorcyclist at this speed must be equal to:
    $\phi = \arctan \frac{v_{\text{max}}^2}{gR} = \arctan k.$
  • In creating the centripetal acceleration, the horizontal components of the friction force and the track reaction force will participate (see figure):
    $mv_{\text{max}}^2/R = F_{fr.max} \cos \alpha + N \sin \alpha. \tag{1}$
    The sum of the vertical components of the forces acting on the motorcycle must be zero (there is no acceleration in the vertical direction):
    $F_{fr.max} \sin \alpha + mg - N \cos \alpha = 0.\tag{2}$
    Maximum friction force
    $F_{fr.max} = kN.\tag{3}$
    Solving equations (1), (2), and (3) together, we get
    $v_{\text{max}} = \sqrt{gR \frac{k + \tan \alpha}{1 - k \tan \alpha}}.$
  • Hint. From part 3, it follows that
    $v_{\text{max}} \to \infty w h e n $ 1 k tan α 0 $ , w h e n c e \alpha_0 = \arctan (1/k).

    Description

  • 23. An airplane performs a turn, moving along an arc of a circle with a constant speed $v = 360$ km/h. Determine the radius $R$ of this circle if the body of the airplane is turned around the direction of flight by an angle $\alpha = 10^\circ$.

    Answer

    $R \approx 5780$ m.

    Solution

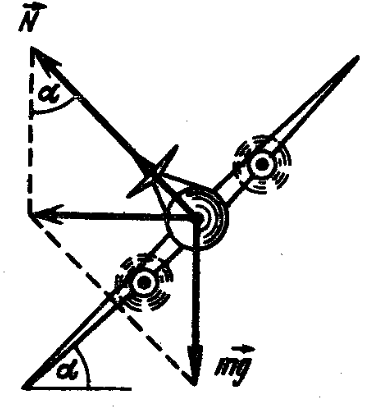

    The aircraft changes its direction of flight by transitioning to motion along an arc of a circle by banking its fuselage around the direction of flight. In this case, the centripetal acceleration is imparted to the aircraft by the resultant of the gravity force and the lift force, perpendicular to the plane of the wings. This resultant is equal to $mg \tan \alpha$ (see figure). According to Newton's second lawmg \tan \alpha = mv^2/R,$ whence $R = v^2/(g \tan \alpha).Description

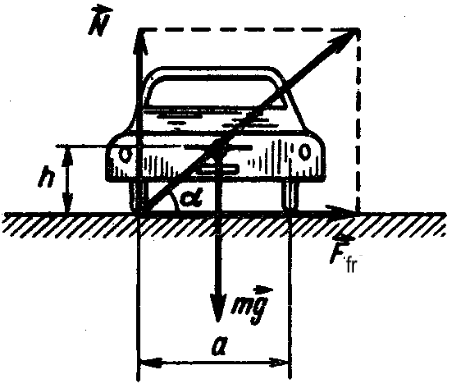

    24. A car moves uniformly on a road turn of radius $R = 100$ m. The center of gravity of the car is at a height $h = 1$ m, the width of the car's track is $a = 1.5$ m. Determine the speed $v$ at which the car might tip over. The car does not slide in the transverse direction.

    Answer

    $v \approx 26.1$ m/s.

    Solution

    When the car turns, the pressure on its wheels, and hence the forces acting on the car wheels from the road, are redistributed. At the maximum permissible speed of the car, the forces acting on it from the road will be applied to the outer wheels and are equal to: a) the reaction force $N = mg$ (numerically equal to the gravity force acting on the car, as there is no acceleration in the vertical direction) and b) the friction force $F_{fr} = mv^2/R$ (as it provides the car with centripetal acceleration). The car will overturn if the direction of the resultant of these forces passes below the center of mass of the car - in this case, there is an overturning moment of force relative to the center of mass. At the critical speed, this resultant passes through the center of mass of the car and therefore (see figure)N/F_{fr} = \tan \alpha = (a/2)/h = a/(2h), o r mg / (mv^2/R) = a/(2h),$ whence $v = \sqrt{gRa/(2h)}.Description

    25. A driver, driving a car, suddenly noticed a fence ahead, perpendicular to the direction of his movement. What is more advantageous to do to prevent an accident: brake or turn aside?

    Answer

    Brake.

    Solution

    During braking, the friction force $F_{fr}$ must perform work $A = F_{fr} x$ ($x$ is the braking distance), equal to the kinetic energy the car had before braking: $F_{fr} x = mv^2/2$. Hence the braking distance $x = mv^2/(2 F_{fr})$. If the driver, without braking, turns aside, the car will move along an arc of a circle, and the centripetal acceleration $a_{cp} = v^2/R$ ($R$ is the radius of curvature) will be provided to the car by the same friction force. From the equation of motion $F_{fr} = mv^2/R$, we find that the turning radius will be $R = mv^2/F_{fr}$, i.e., it is twice the 'braking distance'. This means it is more advantageous to brake than to turn.

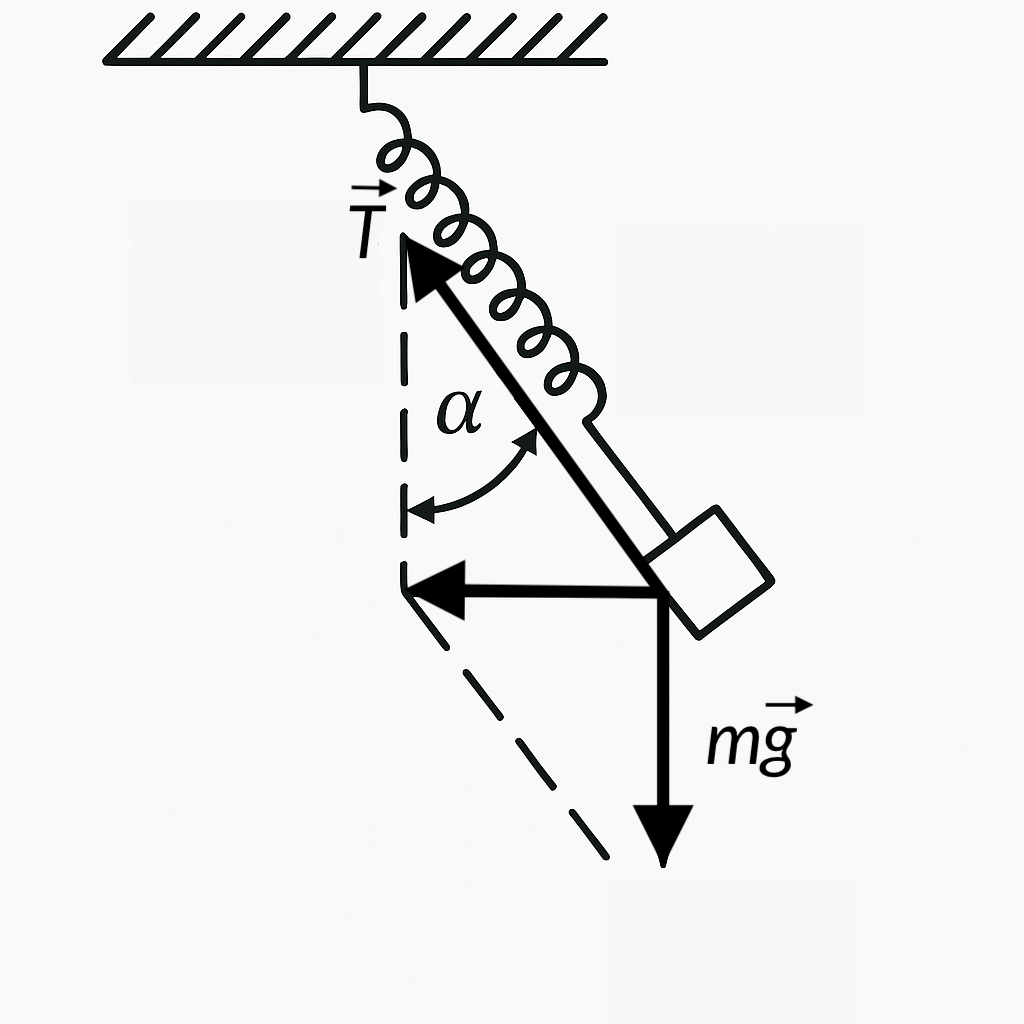

    26. In a train car, moving uniformly along a curved path with a speed $v = 72$ km/h, a load is weighed on a spring scale. The mass of the load is $m = 5$ kg, and the radius of curvature of the path is $R = 200$ m. Determine the reading of the spring scale (the tension force of the spring $T$).

    Answer

    $T \approx 51$ N.

    Solution

    Centripetal acceleration is imparted to the suspended mass by the resultant of the gravity force and the tension force $T$ of the spring. This resultant is equal to $mg \tan \alpha$ (see figure). According to Newton's second law $mg \tan \alpha = mv^2/R$, hence $\tan \alpha = v^2/(gR)$. The tension force of the springT = mg/\cos \alpha = mg \sqrt{1 + \tan^2 \alpha} = mg \sqrt{1 + \frac{v^4}{g^2 R^2}}. < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 1024 / 1024 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 F_1 = \rho_m \omega^2 r V,$ directed towards the axis of rotation, acts on the cream particle from the surrounding milk. This force turns out to be greater than the force required for the circular motion of the cream particle, which is $F_2 = \rho_c \omega^2 r V.The difference between these forces is the separating force.

    28. An airplane performs a 'loop-the-loop' with a radius $R = 100$ m and moves along it with a speed $v = 280$ km/h. With what force $F$ will the pilot's body of mass $M = 80$ kg press on the seat of the airplane at the top and bottom points of the loop?

    Answer

    $F_{\text{top}} = \frac{Mv^2}{R} - Mg \approx 4030$ N, $F_{\text{bottom}} = \frac{Mv^2}{R} + Mg \approx 5630$ N.

    Hint

    See problem 15. The centripetal acceleration at the top and bottom points of the 'dead loop' is imparted to the pilot by the resultant of the gravity force and the reaction force of the seat.

    29. Determine the tension force $T$ of the giant swing cable, if the mass of the person is $M = 70$ kg and the cable forms an angle $\alpha = 45^\circ$ with the pole during rotation. With what angular velocity $\omega$ will the giant swings rotate if the length of the suspension is $l = 5$ m?

    Answer

    $T = Mg/\cos \alpha \approx 990$ N; $\omega = \sqrt{g/(l\cos\alpha)} \approx 1.68$ rad/s.

    Hint

    Centripetal acceleration is imparted to the person by the resultant of the gravity force and the tension force of the rope; this resultant is horizontal.

    30. Find the period $T$ of rotation of a conical pendulum performing circular motions in a horizontal plane. The length of the string is $l$. The angle formed by the string with the vertical is $\alpha$.

    Answer

    $T = 2\pi \sqrt{l\cos\alpha/g}$. For small angles $T \approx 2\pi \sqrt{l/g}$.

    Solution

    Centripetal acceleration is imparted to the pendulum by the resultant of the gravity force $m\vec{g}$ and the tension force of the string $\vec{T}$ (see figure). This resultant lies in the plane of motion of the pendulum and is equal to $mg \tan \alpha$. According to Newton's second law,m\omega^2 R = mg \tan \alpha o r \frac{4\pi^2}{T^2} l \sin \alpha = g \tan \alpha ( s i n c e $ R = l sin α $ a n d $ ω = 2 π / T $ ) . H e n c e T = 2\pi \sqrt{l \cos \alpha / g}.Description

    31. A small weight, suspended on a string, rotates in a horizontal plane such that the distance from the suspension point to the plane in which the rotation occurs is $h$. Find the frequency $n$ of rotation of the weight, considering it constant.

    Answer

    $n = \frac{1}{2\pi} \sqrt{g/h}$. (The answer does not depend on the length of the suspension.)

    32. A chandelier of mass $m = 100$ kg is suspended from the ceiling on a metal chain of length $l = 5$ m. Determine the height $h$ to which the chandelier can be deflected so that the chain does not break during subsequent swings. It is known that the chain breaks when the tension force $T > 1960$ N.

    Answer

    $h \le (T - mg) l / (2mg) \approx 2.5$ m.

    Solution

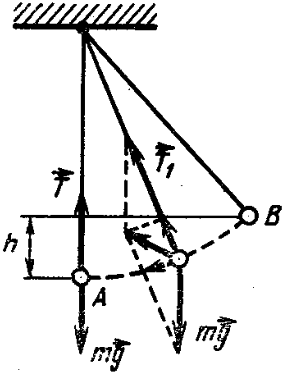

    Two forces act on the chandelier at any point of the trajectory (see figure): the force of gravity $mg$ and the tension force of the chain $T$. When the chandelier passes the equilibrium position (point A), the forces are directed along the same line. Let's write the equation of Newton's second law for the chandelier at the moment it passes point A:ma_{cp} = T - mg, w h e r e $ a c p = v 2 / l $ i s t h e c e n t r i p e t a l a c c e l e r a t i o n . T h e n mv^2/l = T - mg.\tag{1}$ From the law of conservation of energy, we find the speed of the chandelier at point A: $mgh = mv^2/2, o r v^2 = 2gh.\tag{2}$ Substituting expression (2) into equation (1), we have $m(2gh)/l = T - mg,$ whence $h = (T - mg) l / (2mg).$ According to the condition, T < 2 m g , therefore, $h < 2.5 \text{ m} . < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 295 / 374 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 \frac{mv_b^2}{2} - \frac{mv_t^2}{2} = mg \cdot 2R.

    36. A gymnast 'swings the giant' on the high bar. The mass of the gymnast is $m$. Assuming that his entire mass is concentrated at the center of gravity, and the speed at the highest point is zero, determine the force acting on the gymnast's hands at the lowest point.

    Answer

    $5mg$.

    Hint

    See the previous problem and problem 28.

    37. One weight is suspended on an inextensible string of length $l$, and another on a rigid weightless rod of the same length. What minimum speeds must be imparted to these weights so that they rotate in a vertical plane?

    Answer

    $v_{\text{min}} = \sqrt{5gl}$ for the string; $v_{\text{min}} = 2\sqrt{gl}$ for the rod.

    Hint

    In the case of a massless rod, the minimum speed $v_{\text{min}}$ of the mass at the lowest point is determined by the condition: the change in its potential energy upon rising from the lowest to the highest point equals the initial kinetic energy of the mass:mg \cdot 2l = mv^2/2.The speed of the mass at the highest point is zero. In the case where the mass rotates on an inextensible string, this condition is insufficient; another condition is needed: the string must remain taut up to the highest point. The speed of the mass at the highest point cannot be zero, but must be such that the centripetal acceleration is provided to the mass only by the force of gravity: $mv_{top}^2/l = mg$. At this moment $T = 0$, which is the condition for the minimum speed.

    38. A ball of mass $M$ is suspended on a string. In the taut state, the string was positioned horizontally and the ball was released. Derive the dependence of the string tension force $T$ on the angle $\alpha$ that the string currently makes with the horizontal direction. Check the derived formula by solving the problem for the case of the ball passing through the equilibrium position, when $\alpha = 90^\circ$.

    Answer

    $T = 3Mg \sin \alpha$; $T = 3Mg$.

    Hint

    See problem 32.

    39. A simple pendulum of length $l$ and mass $M$ was deflected by an angle $\phi_0$ from the equilibrium position and given an initial velocity $v_0$, directed perpendicular to the string upwards. Find the tension force of the pendulum string $T$ as a function of the angle $\phi$ of the string with the vertical.

    Answer

    $\displaystyle T = Mg(3 \cos \phi - 2 \cos \phi_0 + \frac{v_0^2}{gl})$ until it comes to rest.

    Hint

    See problem 32. Consider the initial kinetic energy of the pendulum.

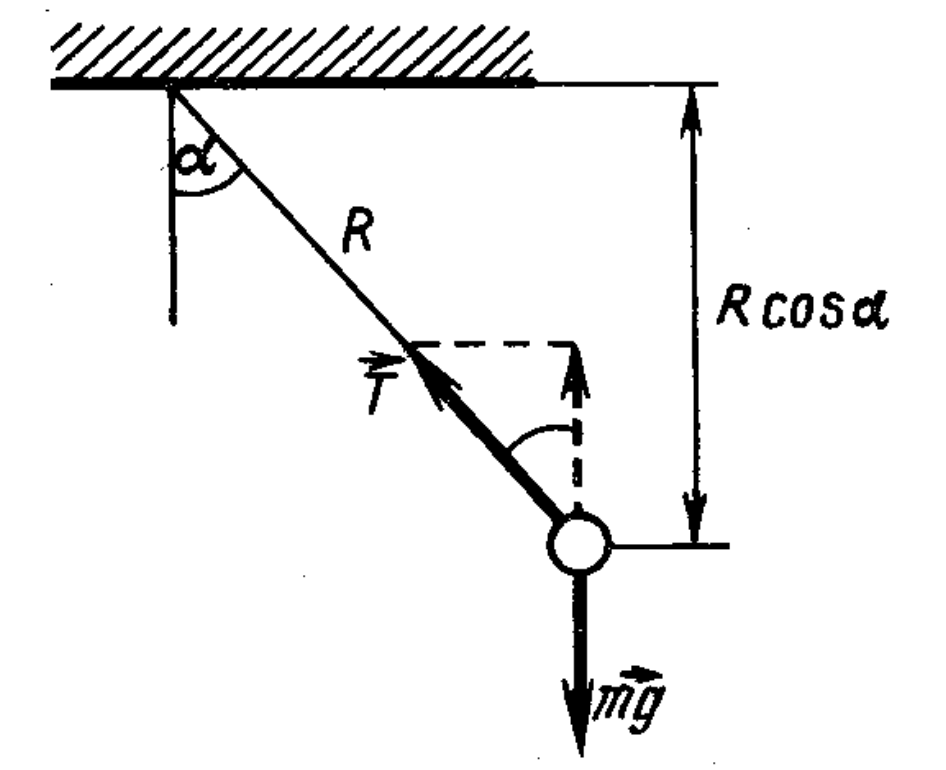

    40. A weight, suspended on a string, is pulled aside so that the string assumes a horizontal position, and released. What angle $\alpha$ with the vertical does the string form at the moment when the vertical component of the weight's velocity is maximum?

    Answer

    $\cos \alpha = \sqrt{3}/3$; $\alpha \approx 54.7^\circ$.

    Solution

    The vertical component of the bob's velocity will increase until the vertical component of the resultant of the applied forces, gravity $m\vec{g}$ and string tension $\vec{T}$ (see figure), becomes zero:T \cos \alpha - mg = 0.\tag{1}$ After this, the vertical component of the bob's velocity will decrease. Since the bob moves in a circle, according to Newton's second law $mv^2/R = T - mg \cos \alpha.$ Substituting the bob's velocity found from the law of conservation of energy: $mv^2/2 = mgR \cos \alpha$ [assuming release from horizontal position], into this equation, and solving the resulting equation together with equation (1), we find: $\cos \alpha = 1/\sqrt{3}.Description

    41. Identical elastic balls of mass $m$, suspended on strings of equal length to one hook, are deflected to different sides from the vertical by an angle $\alpha$ and released. The balls collide and bounce off each other. What is the force $F$ acting on the hook:

    a) at the extreme positions of the strings;

    b) at the initial and final moments of the balls' impact;

    c) at the moment of maximum deformation of the balls?

    Answer

    a) $F = 2mg \cos^2 \alpha$;

    b) $F = 2mg (3 - 2 \cos \alpha)$;

    c) $F = 2mg$.

    Hint

    a) The resultant of the string tension force and the ball's weight force is directed perpendicular to the string and imparts an initial acceleration $a = g \sin \alpha$ to the ball.

    b) The speed of each ball at the initial moment of impact can be found using the law of conservation of mechanical energy. Then, from the laws of conservation of energy and momentum, it follows (see problems 28 and 39 in Chapter: Conservation of Energy) that the speeds of the balls at the final moment of impact will be equal in magnitude to their speeds at the initial moment of impact and directed in opposite directions. Knowing the speeds of the balls, it is easy to find the tension forces of the strings (see, for example, problem 32).

    c) At the moment of maximum deformation of the balls, the speed of each ball is zero.

    42. A simple pendulum with a flexible inextensible string of length $l$ is given a horizontal velocity $v_0 = \sqrt{3gl}$ from the equilibrium position. Determine the maximum height $h$ of its rise when moving in a circle, if $v_0^2 = 3gl$. What trajectory will the pendulum bob follow after it reaches the maximum height $h$ on the circle? Determine the maximum height $H$ reached during this motion of the pendulum.

    Answer

    $h = \sqrt{3}l$; parabolic trajectory (trajectory of a body thrown at an angle to the horizon); $H = 40l/27$.

    Hint

    See problems 37 and 32. At the point of maximum ascent of the pendulum, the tension force of the string becomes zero, and the centripetal acceleration is provided to the pendulum by the radial component of the gravity force.

    43. A small ball is suspended at point A on a string of length $l$. At point O at a distance $l/2$ below point A, a nail is driven into the wall. The ball is pulled aside so that the string occupies a horizontal position, and released. At what point in the trajectory does the tension force of the string disappear? How will the ball move further? To what maximum height will the ball rise?

    Answer

    Below the suspension point by $l/6$; parabolic; $2l/27$ below the suspension point.

    Hint

    See the previous problem.

    44. A vessel, having the shape of an expanding truncated cone with a bottom diameter $D = 20$ cm and a wall inclination angle $\alpha = 60^\circ$, rotates around the vertical axis $OO_1$. At what angular velocity of rotation $\omega$ of the vessel will a small ball lying on its bottom be thrown out of the vessel? Neglect friction.

    Answer

    $\omega > \sqrt{2g\tan\alpha/D} \approx 13$ rad/s.

    Hint

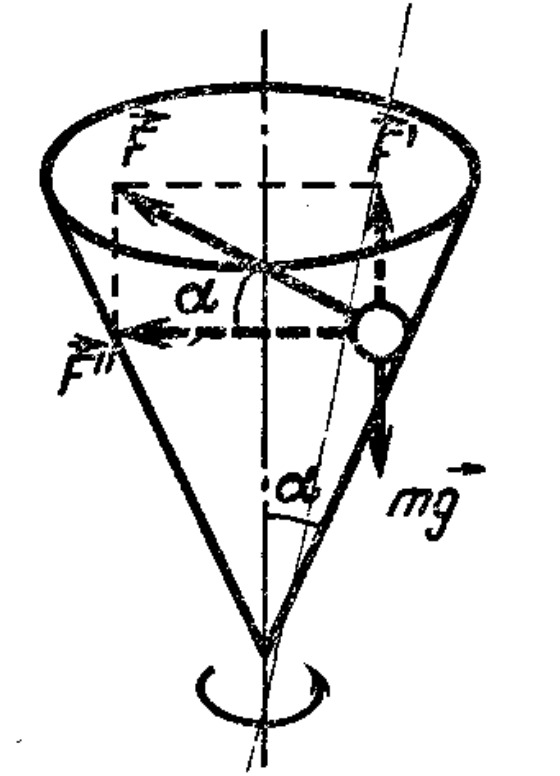

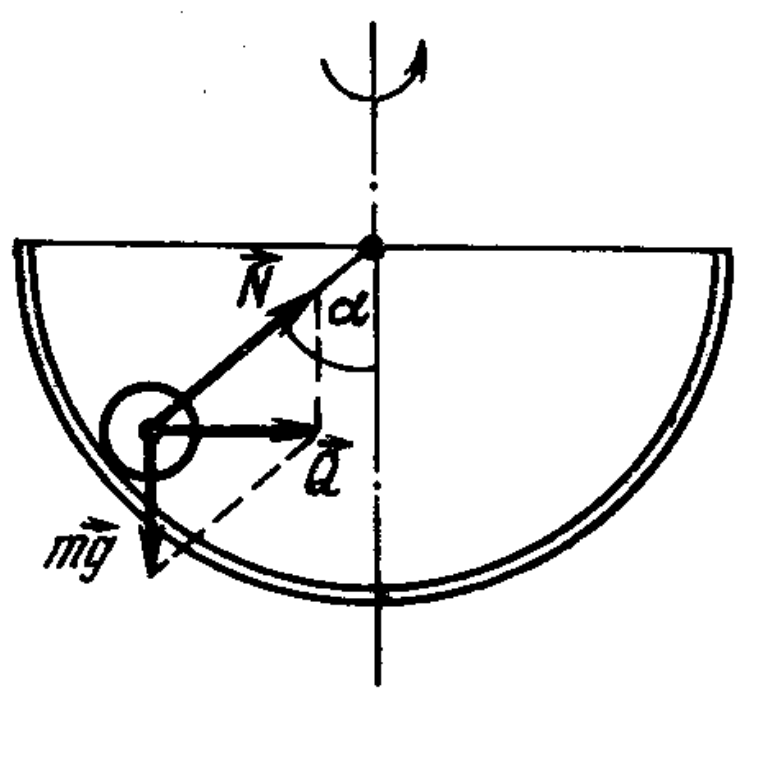

    Two forces act on the ball located on the wall of the rotating vessel: the force of gravity $mg$ and the reaction force $N$ of the vessel wall (see figure). At equilibrium of the ball relative to the vessel, the resultant of these forces provides the ball with centripetal acceleration, i.e.,m\omega^2 R = mg \tan \alpha.$ From this, it follows that the ball can be in equilibrium at a distance R from the axis of rotation of the vessel if the vessel rotates with angular velocity $\omega = \sqrt{g\tan\alpha/R}.$ At the bottom of the vessel, the ball is still in equilibrium, but no longer presses on the bottom at $\omega_{cr} = \sqrt{2g\tan\alpha/D}; i f $ ω $ i s i n c r e a s e d , t h e n f r o m t h e e q u a t i o n g i v e n a b o v e , i t f o l l o w s t h a t f o r n o $ R D / 2 $ w i l l i t b e i n e q u i l i b r i u m a n d w i l l b e e j e c t e d . < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 652 / 564 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 Q = mg \tan \alpha$ (see figure).

    According to Newton's second law $m\omega^2 l = mg \tan \alpha, w h e r e $ l = R sin α $ i s t h e d i s t a n c e o f t h e b a l l f r o m t h e a x i s o f r o t a t i o n ; \omega^2 R \sin \alpha = g \tan \alpha. T h i s e q u a t i o n h a s t w o r o o t s f o r $ α $ :< / p >< o l >< l i > $ sin α = 0 $ , $ α = 0 $ ; < / l i >< l i > $ cos α = g / ( ω 2 R ) $ . < / l i >< / o l >< p > T h e p o s i t i o n o f t h e b a l l w i t h $ α = arccos ( g ω 2 R ) $ i s p o s s i b l e o n l y w h e n \omega \ge \sqrt{g/R}. T h e p o s i t i o n $ α = 0 $ i s p o s s i b l e a t a n y a n g u l a r v e l o c i t y o f t h e s p h e r e , b u t f o r $ ω < g / R $ t h e e q u i l i b r i u m i s s t a b l e , a n d f o r $ ω g / R $ i t i s u n s t a b l e . I n o u r c a s e $ ω > g / R 2.2  s 1 $ . H e i g h t $ h = R R cos α = R ( 1 g ω 2 R ) $ , a n d t h e r e a c t i o n f o r c e o f t h e s p h e r e N = mg/\cos \alpha = m\omega^2 R.Description

    46. Inside a conical surface, moving with acceleration $a$, a ball rotates along a circle of radius $R$. Determine the period $T$ of the ball's motion along the circle. The angle at the apex of the cone is $2\alpha$.

    Answer

    $T = 2\pi \sqrt{R\tan\alpha/(a + g)}$.

    Solution

    The forces acting on the ball must provide it with both horizontal and vertical acceleration. Let's resolve the force $F$, acting on the ball from the side of the conical surface, into vertical $F' = F \sin \alpha$ and horizontal $F'' = F \cos \alpha$ components (see figure). The resultant of the vertical component of the force $F'$ and the gravity force provides the ball with acceleration $a$ upwards. The horizontal component of the force $F''$ provides the ball with centripetal acceleration $a_{cp} = \omega^2 R$ ($\omega$ is the angular velocity of rotation). Therefore, according to Newton's second law $ma = F \sin \alpha - mg$ and $m\omega^2 R = F \cos \alpha$. Eliminating $F$ from these equations, we find:\omega = \sqrt{(a + g)/(R\tan\alpha)},$ $T = 2\pi/\omega = 2\pi \sqrt{R\tan\alpha/(a + g)}. < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 560 / 776 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 \frac{1}{2}mv^2+ mg \cdot 2R = mgh,we find that the body must slide down from a height $h = 2.5 R$.

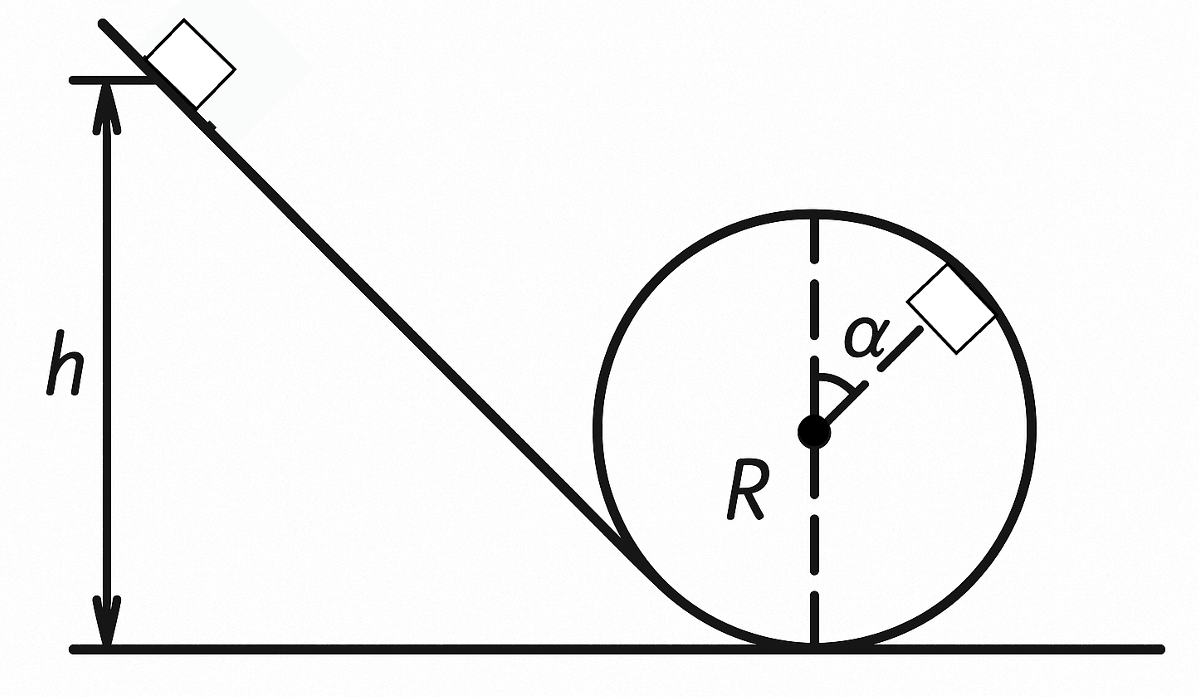

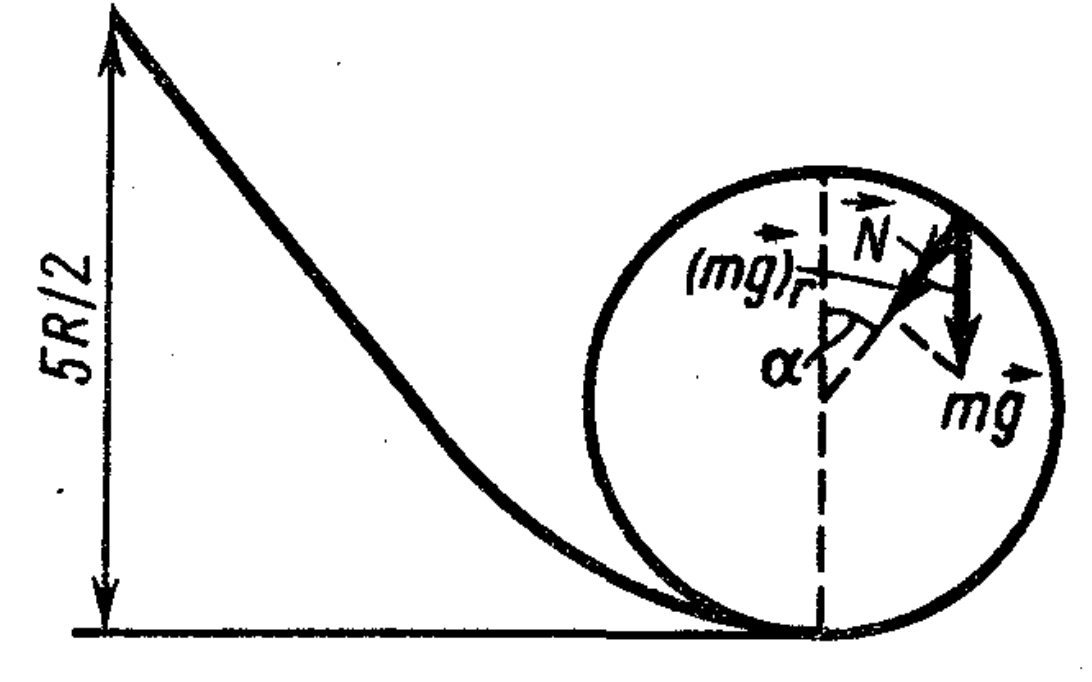

    b) At the point whose radius vector makes an angle $\alpha$ with the vertical (see figure), the centripetal acceleration will be provided to the body by the resultant of the reaction force $N$ of the platform and the radial component of the gravity force $(mg)_r = mg \cos \alpha$.

    According to Newton's second lawmv^2/R = N + mg \cos \alpha.$
    The speed of the body at this point can be easily determined using the law of conservation of energy:
    $\frac{5}{2} mgR = \frac{mv^2}{2} + mg (R + R \cos \alpha),v = \sqrt{gR (3 - 2 \cos \alpha)}.$
    Substituting this expression for v into Newton’s second law, we get:
    $
    N = \frac{m}{R} \left[ gR(3 - 2\cos\alpha) \right] - mg \cos\alpha = 3mg(1 - \cos\alpha)
    T h e n o r m a l f o r c e $ F $ e x e r t e d b y t h e b o d y o n t h e t r a c k n u m e r i c a l l y e q u a l s t h e n o r m a l r e a c t i o n $ N $ . ( D e t e r m i n e t h e v a l u e o f $ N $ f o r $ α = 0 $ a n d $ α = π $ . ) < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 1092 / 682 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 mv^2/R = mg \cos \alpha. < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 766 / 562 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 mv^2/R = mg \cos \alpha - N.As the body slides down, the component of the weight force $mg \cos \alpha$ (where $\alpha$ is the angle between the vertical and the direction from the center of the sphere to the body) decreases, and its speed increases, which leads to an even faster decrease in the support reaction force (the support reaction force depends on the nature of the body's motion). At the moment of detachment, $N$ becomes zero and thenmv^2/R = mg \cos \alpha.\tag{1}$ Based on the law of conservation of energy $mv^2/2 = mgh.\tag{2} A l s o , i t i s o b v i o u s t h a t $ cos α = ( R h ) / R $ . ( 3 ) S o l v i n g e q u a t i o n s ( 1 ) , ( 2 ) , ( 3 ) t o g e t h e r , w e g e t h = R/3. < / p >< / d e t a i l s >< / d i v >< d i v c l a s s = " x c a " i d = " p r o b l e m 6 50 " >< p >< s t r o n g > 50. < / s t r o n g > F i n d t h e k i n e t i c e n e r g y o f a h o o p o f m a s s $ m $ r o l l i n g w i t h s p e e d $ v $ . T h e r e i s n o s l i p p i n g . < / p >< d e t a i l s >< s u m m a r y > A n s w e r < / s u m m a r y >< p > $ m v 2 $ . < / p >< / d e t a i l s >< d e t a i l s >< s u m m a r y > S o l u t i o n < / s u m m a r y >< p > E a c h p o i n t o f t h e h o o p p a r t i c i p a t e s i n t w o m o t i o n s : t r a n s l a t i o n a l m o t i o n w i t h v e l o c i t y $ v $ a n d r o t a t i o n a l m o t i o n w i t h a n g u l a r v e l o c i t y $ ω $ a b o u t t h e c e n t e r o f t h e h o o p . T h e l i n e a r v e l o c i t y o f r o t a t i o n a l m o t i o n i s $ v r o t = ω R $ . I n t h e a b s e n c e o f s l i p p i n g $ ω = v / R $ a n d t h e r e f o r e $ v r o t = v $ . C o n s i d e r t w o d i a m e t r i c a l l y o p p o s i t e i d e n t i c a l s m a l l e l e m e n t s o f t h e h o o p , h a v i n g m a s s $ Δ m $ ( s e e f i g u r e ) . T h e i r v e l o c i t i e s a r e e q u a l t o t h e v e c t o r s u m o f t h e v e l o c i t i e s o f t r a n s l a t i o n a l a n d r o t a t i o n a l m o t i o n s , a n d t h e r e f o r e : v_A^2 = v^2 + v_{rot}^2 - 2vv_{rot} \cos \alpha = 2v^2 (1 - \cos \alpha);$ $v_B^2 = v^2 + v_{rot}^2 + 2vv_{rot} \cos \alpha = 2v^2 (1 + \cos \alpha).$ The total kinetic energy of these elements of the hoop is $\frac{\Delta m v_A^2}{2} + \frac{\Delta m v_B^2}{2} = 2 \Delta m v^2.This relationship does not depend on $\alpha$, i.e., on the choice of the diameter at the ends of which the chosen elements of the hoop lie. Therefore, the kinetic energy of the entire hoop will be equal to $mv^2$. Description

    51. A thin hoop rolls without slipping into a pit having the shape of a hemisphere. At what depth $h$ is the normal pressure force of the hoop on the wall of the pit equal to its weight? The radius of the pit is $R$, the radius of the hoop is $r$.

    Answer

    $h = (R - r)/2$.

    Solution

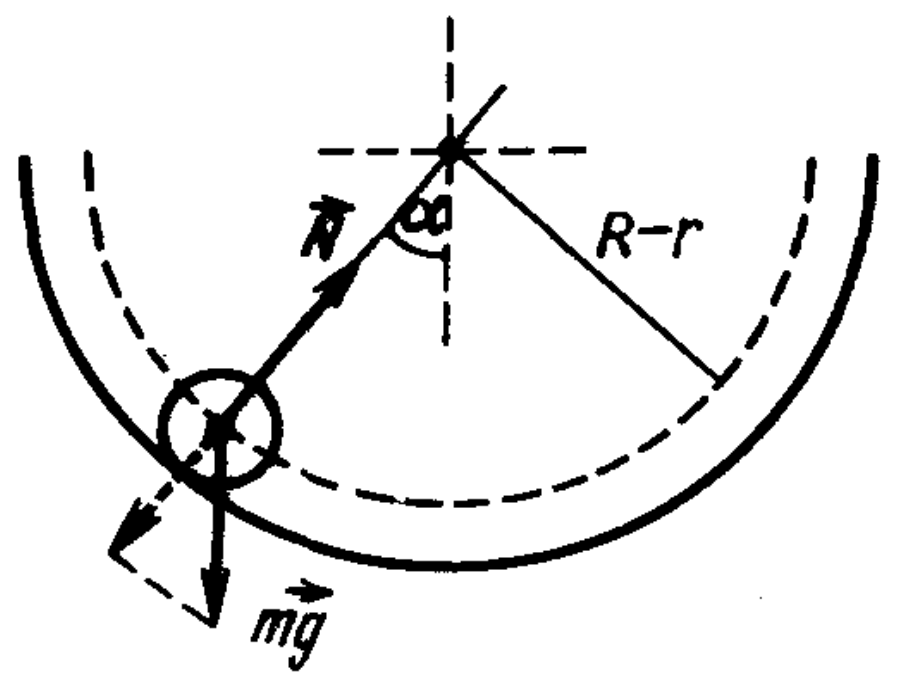

    Sliding down, the hoop moves along a circle. Centripetal acceleration is imparted to it by the sum of the radial components of the forces applied to the hoop (see figure), equal to $N - mg \cos \alpha$ ($N$ is the reaction force of the hemisphere, $m$ is the mass of the hoop, and $\alpha$ is the angle formed by the radius vector of the hoop with the vertical). According to Newton's second lawmv^2/(R - r) = N - mg \cos \alpha,\tag{1}$ where v is the velocity of the center of the hoop. From the law of conservation of energy, it follows that $mg(R-r)(1-\cos\alpha) = \frac{mv^2}{2} + \frac{I\omega^2}{2}. F o r a h o o p $ I = m r 2 $ . W i t h n o s l i p $ v = ω r $ . S o mg(R-r)(1-\cos\alpha) = \frac{mv^2}{2} + \frac{m(v/r)^2 r^2}{2} = mv^2.\tag{2} H e r e $ m v 2 / 2 $ c o r r e s p o n d s t o t h e k i n e t i c e n e r g y o f t h e t r a n s l a t i o n a l m o t i o n o f t h e c e n t e r o f m a s s o f t h e h o o p ; $ m ( ω r ) 2 2 $ c o r r e s p o n d s t o t h e k i n e t i c e n e r g y o f r o t a t i o n o f t h e h o o p r e l a t i v e t o t h e c e n t e r o f m a s s ( s e e p r e v i o u s p r o b l e m ) ; $ m g ( R r ) ( 1 cos α ) $ i s t h e c h a n g e i n p o t e n t i a l e n e r g y . F r o m e q u a t i o n ( 2 ) w e f i n d $ v 2 = g ( R r ) ( 1 cos α ) $ . S u b s t i t u t i n g t h i s e x p r e s s i o n f o r $ v 2 $ i n t o e q u a t i o n ( 1 ) a n d s e t t i n g $ N = 0 $ ( c o n d i t i o n f o r d e t a c h m e n t ) , w e f i n a l l y g e t \cos \alpha = 1/2 a n d h = (R - r) \cos \alpha = (R - r)/2. < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 902 / 674 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 mv^2/R = F.$ The force F is equal to the product of the pressure p and the area of the diametral section ABCD, perpendicular to the radius of the ring, i.e., $F = pdl.$ The mass of the selected volume $m = \rho \pi d^2 l / 4.$ The flow velocity of water is determined from the formula $M = \rho \pi d^2 v t / 4\quad (\tex{time } t = 1 \text{ h}),$ whence $v = \frac{4M}{\rho \pi d^2 t}. S u b s t i t u t i n g t h e v a l u e s o f $ m $ a n d $ v $ i n t o t h e f o r m u l a f o r $ F $ , w e g e t t h e a n s w e r . < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 1376 / 742 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 (m_1 + m_2)g\frac{l}{2} = m_2 g l + \frac{1}{2} m_1 v_1^2 + \frac{1}{2} m_2 v_2^2 < / p >< p > S u b s t i t u t i n g $ v 1 = v 2 = ω l 2 $ , w e f i n d :
    \omega = 2 \sqrt{ \frac{(m_1 - m_2)g}{(m_1 + m_2)l} }
    < / p >< p > T h e f o r c e $ F $ e x e r t e d o n t h e a x i s e q u a l s t h e s u m o f t h e t e n s i o n f o r c e s $ T 1 $ a n d $ T 2 $ i n e a c h h a l f o f t h e r o d . W e a s s u m e b o t h r o d s a r e u n d e r t e n s i o n . T h e n , a c c o r d i n g t o N e w t o n s s e c o n d l a w :
    T_1 - m_1 g = m_1 \omega^2 \frac{l}{2}, \quad m_2 g + T_2 = m_2 \omega^2 \frac{l}{2}
    < / p >< p > S u b s t i t u t i n g t h e e x p r e s s i o n f o r $ ω $ a t t h e m o m e n t b o t h m a s s e s p a s s t h r o u g h t h e e q u i l i b r i u m p o s i t i o n a n d s o l v i n g t h e s e e q u a t i o n s f o r $ T 1 $ a n d $ T 2 $ , w e o b t a i n :
    T_1 = \frac{m_1 g}{m_1 + m_2}(3m_1 - m_2), \quad T_2 = \frac{m_2 g}{m_1 + m_2}(m_1 - 3m_2)
    ( W h e n $ m 1 < 3 m 2 $ , w e g e t $ T 2 < 0 $ . T h i s m e a n s t h a t t h e h a l f o f t h e r o d t o w h i c h t h e m a s s $ m 2 $ i s a t t a c h e d i s u n d e r c o m p r e s s i o n r a t h e r t h a n t e n s i o n , c o n t r a r y t o o u r a s s u m p t i o n . ) < / p >< p > T h e t o t a l f o r c e o n t h e a x i s ( a s s u m i n g b o t h r o d s a r e i n t e n s i o n ) :
    F = T_1 - T_2 = \frac{3\left(m_1^2 + m_2^2\right) - 2m_1 m_2}{m_1 + m_2} g
    < / p >< / d e t a i l s >< / d i v >< d i v c l a s s = " x c a " >< p >< s t r o n g > 56. < / s t r o n g > A s m a l l r i n g o f m a s s $ m $ i s p l a c e d o n a t u r n o f a c y l i n d r i c a l s p i r a l w h o s e a x i s i s v e r t i c a l . T h e r i n g s t a r t s s l i d i n g d o w n t h e s p i r a l w i t h o u t f r i c t i o n . W i t h w h a t f o r c e $ F $ w i l l t h e r i n g p r e s s o n t h e s p i r a l a f t e r i t h a s c o m p l e t e d $ n $ f u l l t u r n s ? T h e r a d i u s o f t h e t u r n i s $ R $ , t h e d i s t a n c e b e t w e e n a d j a c e n t t u r n s i s $ h $ ( p i t c h o f t h e s p i r a l ) . A s s u m e $ h R $ . < / p >< d e t a i l s >< s u m m a r y > A n s w e r < / s u m m a r y >< p > $ F m g 1 + 4 h 2 n 2 R 2 $ . < / p >< / d e t a i l s >< d e t a i l s >< s u m m a r y > S o l u t i o n < / s u m m a r y >< p > A f t e r m a k i n g $ n $ r e v o l u t i o n s , t h e r i n g d e s c e n d s b y a h e i g h t $ n h $ , a n d f r o m t h e l a w o f c o n s e r v a t i o n o f e n e r g y $ m g h n = 1 2 m v 2 $ , i t f o l l o w s t h a t a t t h i s p o i n t t h e r i n g w i l l h a v e a s p e e d : v = \sqrt{2ghn} < / p >< p > T h i s s p e e d i s d i r e c t e d t a n g e n t t o t h e s p i r a l a n d c a n b e c o n s i d e r e d a s t h e s u m o f a < s t r o n g > v e r t i c a l < / s t r o n g > c o m p o n e n t $ v 0 $ a n d a < s t r o n g > h o r i z o n t a l ( r o t a t i o n a l ) < / s t r o n g > c o m p o n e n t $ v 1 $ . < / p >< p > I n p a r t i c u l a r :
    v_1 = v \cos\alpha,
    w h e r e $ α $ i s t h e i n c l i n a t i o n a n g l e o f t h e s p i r a l ; $ α sin α = h 2 π R $ . < / p >< p > S i n c e $ h R $ , w e c a n t a k e $ cos α 1 $ a n d $ v 1 v $ . < / p >< p > T h e < s t r o n g > h o r i z o n t a l c o m p o n e n t < / s t r o n g > o f t h e s p i r a l s r e a c t i o n f o r c e m u s t p r o v i d e t h e r i n g w i t h < s t r o n g > c e n t r i p e t a l a c c e l e r a t i o n < / s t r o n g >:
    a_{\text{cp}} = \frac{v_1^2}{R} \approx \frac{2ghn}{R}
    $
    Therefore, the horizontal reaction force is:
    $
    F_{\text{hor}} = ma_{\text{cp}} = \frac{2mghn}{R}

    lt;/strong> of the ring on the spiral consists of the horizontal component $F_{\text{hor}}$ and the <strong>vertical component</strong> of gravity, $mg \cos\alpha \approx mg$:" display="block"> < / p >< p > T h e r i n g p r e s s e s o n t h e s p i r a l w i t h t h e s a m e f o r c e i n t h e < s t r o n g > h o r i z o n t a l d i r e c t i o n < / s t r o n g > . T h u s , t h e < s t r o n g > t o t a l p r e s s u r e f o r c e $ F $ < / s t r o n g > o f t h e r i n g o n t h e s p i r a l c o n s i s t s o f t h e h o r i z o n t a l c o m p o n e n t $ F hor $ a n d t h e < s t r o n g > v e r t i c a l c o m p o n e n t < / s t r o n g > o f g r a v i t y , $ m g cos α m g $ :
    F \approx \sqrt{(mg)^2 + \left(\frac{2mghn}{R}\right)^2}
    = mg \sqrt{1 + \frac{4h^2 n^2}{R^2}}
    < / p >< / d e t a i l s >< / d i v >< d i v c l a s s = " x c a " >< p >< s t r o n g > 57. < / s t r o n g > A c l o s e d m e t a l c h a i n l i e s o n a s m o o t h h o r i z o n t a l d i s k , b e i n g f r e e l y p l a c e d o n i t s c e n t e r i n g r i n g , c o a x i a l w i t h t h e d i s k . T h e d i s k i s s e t i n t o r o t a t i o n . A s s u m i n g t h e s h a p e o f t h e c h a i n i s a h o r i z o n t a l c i r c l e , d e t e r m i n e t h e t e n s i o n f o r c e $ T $ a l o n g t h e c h a i n i f i t s m a s s i s $ m = 150 $ g , l e n g t h $ l = 20 $ c m , a n d t h e c h a i n r o t a t e s w i t h a f r e q u e n c y $ n = 20 $ s ¹ . < / p >< d e t a i l s >< s u m m a r y > A n s w e r < / s u m m a r y >< p > $ T m n 2 l 12 $ N . < / p >< / d e t a i l s >< d e t a i l s >< s u m m a r y > S o l u t i o n < / s u m m a r y >< p > C o n s i d e r a s m a l l e l e m e n t o f t h e c h a i n o f l e n g t h $ Δ l = R Δ α $ . T h e m a s s o f t h i s e l e m e n t \Delta m = m \Delta l / l = m R \Delta \alpha / l.$ During the rotation of the chain, the centripetal acceleration is imparted to the selected element by the tension forces acting on it from the rest of the chain. The resultant of these forces is $2T \sin (\Delta \alpha / 2)$ (see figure).

    According to Newton's second law

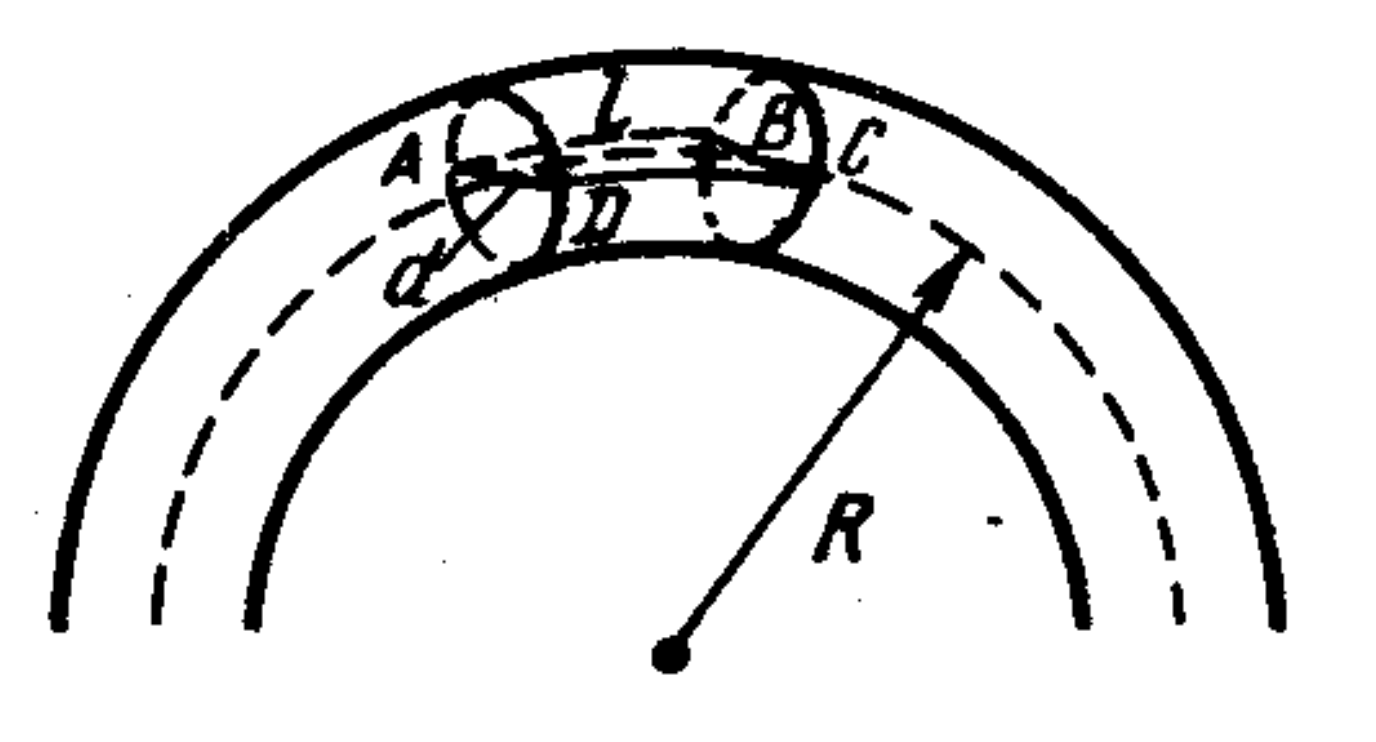

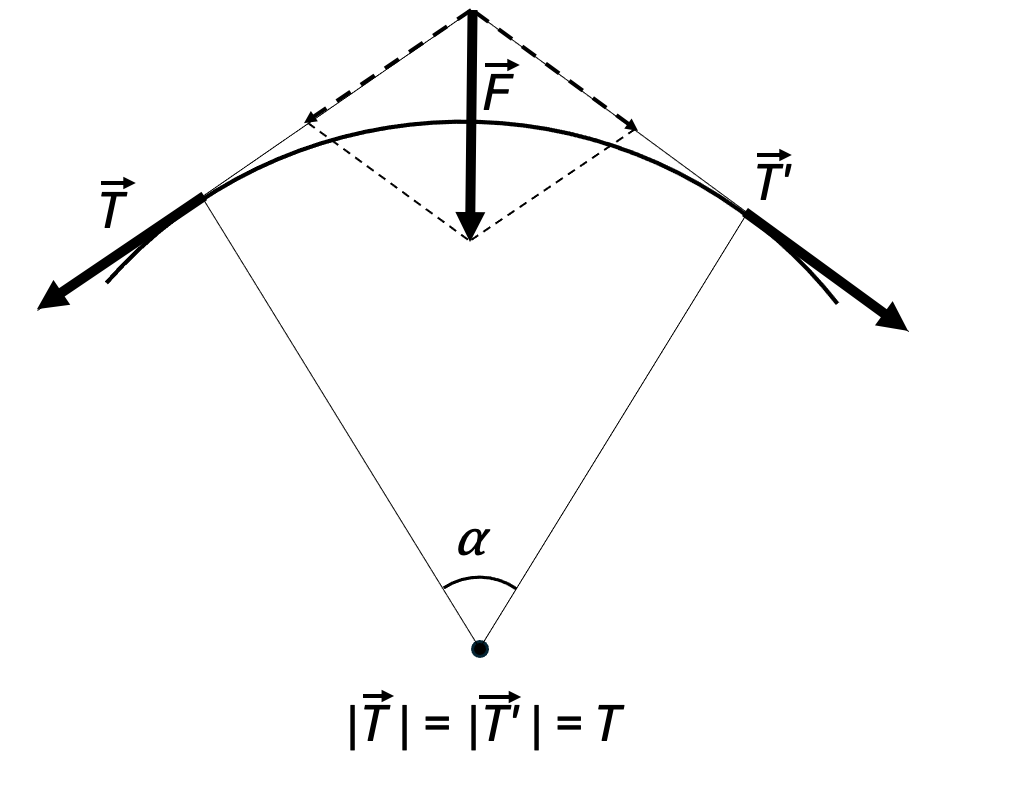

    $2T \sin (\Delta \alpha / 2) = (\Delta m) \omega^2 R. S u b s t i t u t i n g $ ω = 2 π n $ h e r e a n d t a k i n g i n t o a c c o u n t t h a t f o r s m a l l a n g l e s $ sin ( Δ α / 2 ) Δ α / 2 $ , w e g e t 2T \Delta \alpha / 2 \approx m R^2 \Delta \alpha (2\pi n)^2 / l,$
    whence $T \approx m n^2 (2\pi R)^2 / l = m n^2 l. < i m g c l a s s = " i m a g e r e s i z e d " s t y l e = " a s p e c t r a t i o : 1021 / 797 ; h e i g h t : a u t o ; m a r g i n : a u t o ; m a x w i d t h : 450 p x ; w i d t h : 100 m (\omega R + v)^2 / R = mg - F_{1lift}\tag{1} w h e r e $ ω $ i s t h e a n g u l a r v e l o c i t y o f t h e E a r t h ; $ R $ i s i t s r a d i u s . I f t h e a i r c r a f t f l i e s i n t h e o p p o s i t e d i r e c t i o n , t h e n m (\omega R - v)^2 / R = mg - F_{2lift}. \tag{2}$ From equations (2) and (1) we find the change in lift force: $\Delta F_{lift} = F_{2lift} - F_{1lift} = 4mv\omega = 4m (2\pi v / T),$ where T is the period of rotation of the Earth, i.e., one day.
