Graphs of Equations in Two Variables

The graph of an equation in two variables $x$ and $y$ is the set of all points $(x, y)$ in the coordinate plane that satisfy the equation. Sketching a graph means drawing enough representative points and connecting them with a smooth curve to reveal the equation's main features.

Quick Reference

Shape	Equation	Key Parameters
Circle (standard form)	$(x - a)^{2} + (y - b)^{2} = R^{2}$	Center $(a, b)$ , radius $R$
Circle (general form)	$x^{2} + y^{2} + A x + B y + E = 0$	Requires ${(\frac{A}{2})}^{2} + {(\frac{B}{2})}^{2} - E > 0$

Graphs of Equations

An equation such as $y = \frac{x^{2}}{2} + 1$ connects two variables: $x$ and $y$ . An ordered pair satisfies the equation if it makes the equation true when substituted. For instance, $(0,1)$, $(- 1, 1.5)$ , $(1, 1.5)$, and $(2.1, 3.205)$ all satisfy $y = \frac{x^{2}}{2} + 1$ . There are infinitely many such pairs.

Some representative graphs are shown below.

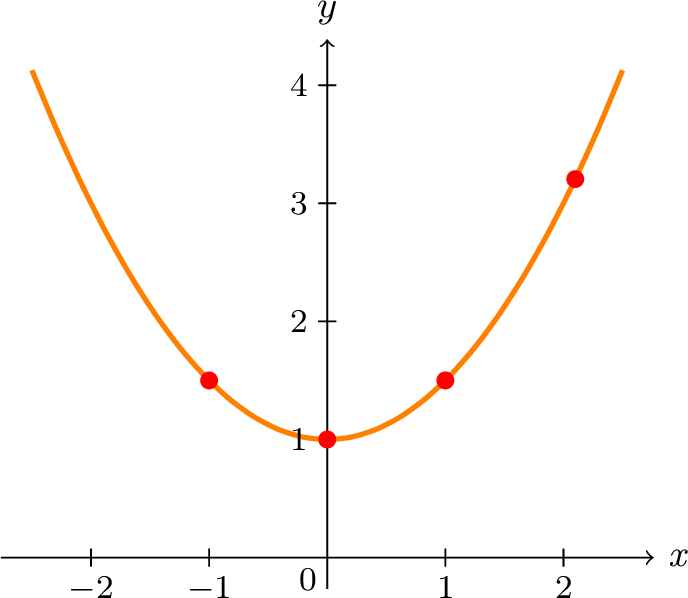

An upward-opening parabola representing y = x²/2 + 1, with vertex at (0, 1). — (a) Graph of $y = \frac{1}{2} x^{2} + 1$

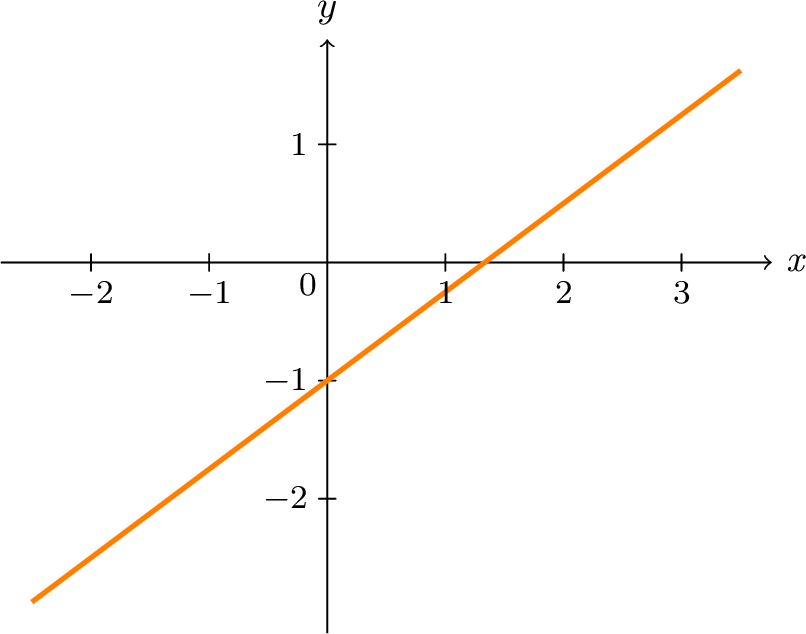

A straight line with positive slope representing y = 3x/4 − 1. — (b) Graph of $y = \frac{3}{4} x - 1$

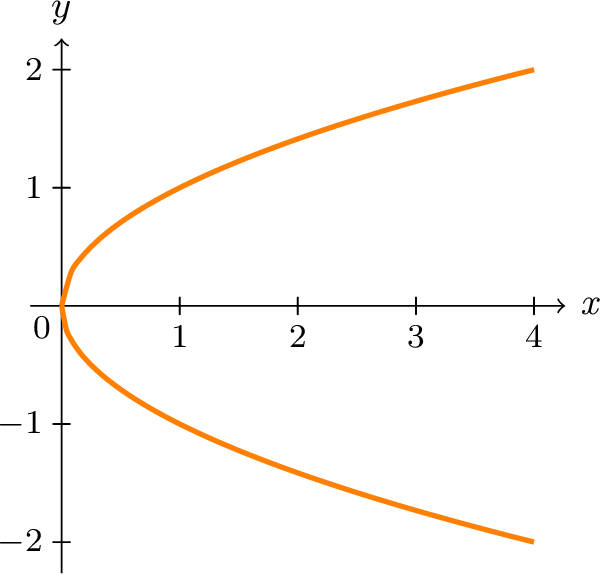

A rightward-opening parabola representing y² = x. — (c) Graph of $y^{2} = x$

Circles

A circle with radius $R$ and center $C (a, b)$ is defined as the set of all points $P (x, y)$ in the plane at distance $R \geq 0$ from $C (a, b)$ . Applying the Distance Formula:

| P C | = \sqrt{(x - a)^{2} + (y - b)^{2}} = R

Squaring both sides gives:

Standard Form of the Equation of a Circle

(x - a)^{2} + (y - b)^{2} = R^{2}

where $R$ is the radius and $(a, b)$ is the center of the circle.

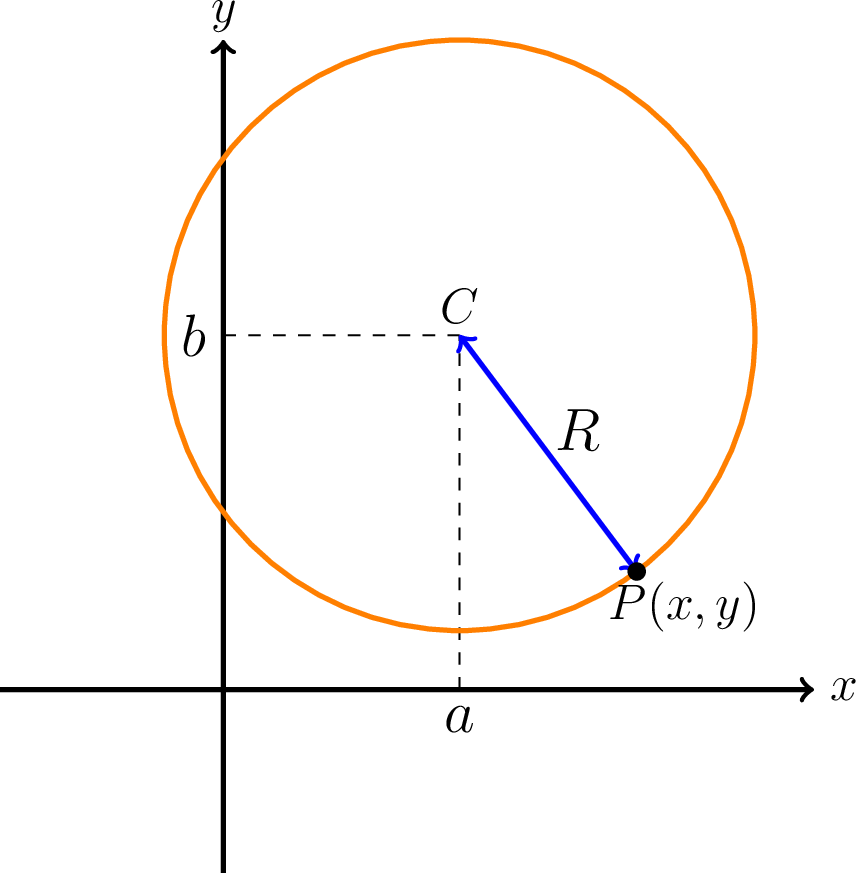

A circle with center C(a, b) and radius R. A point P(x, y) lies on the circle, connected to the center by a radius segment. — All points P(x, y) at distance R from C(a, b) satisfy $(x - a)^{2} + (y - b)^{2} = R^{2}$

Example 1. Write the equation of the circle with center $C (- 1, 1)$ that contains the point $P (- 4, 5)$ .

Solution. Since $P$ lies on the circle, the radius equals $| P C |$ :

R = | P C | = \sqrt{(- 4 - (- 1))^{2} + (5 - 1)^{2}} = \sqrt{9 + 16} = \sqrt{25} = 5.

Substituting $a = - 1$ , $b = 1$ , $R = 5$ into the standard form:

(x + 1)^{2} + (y - 1)^{2} = 25.

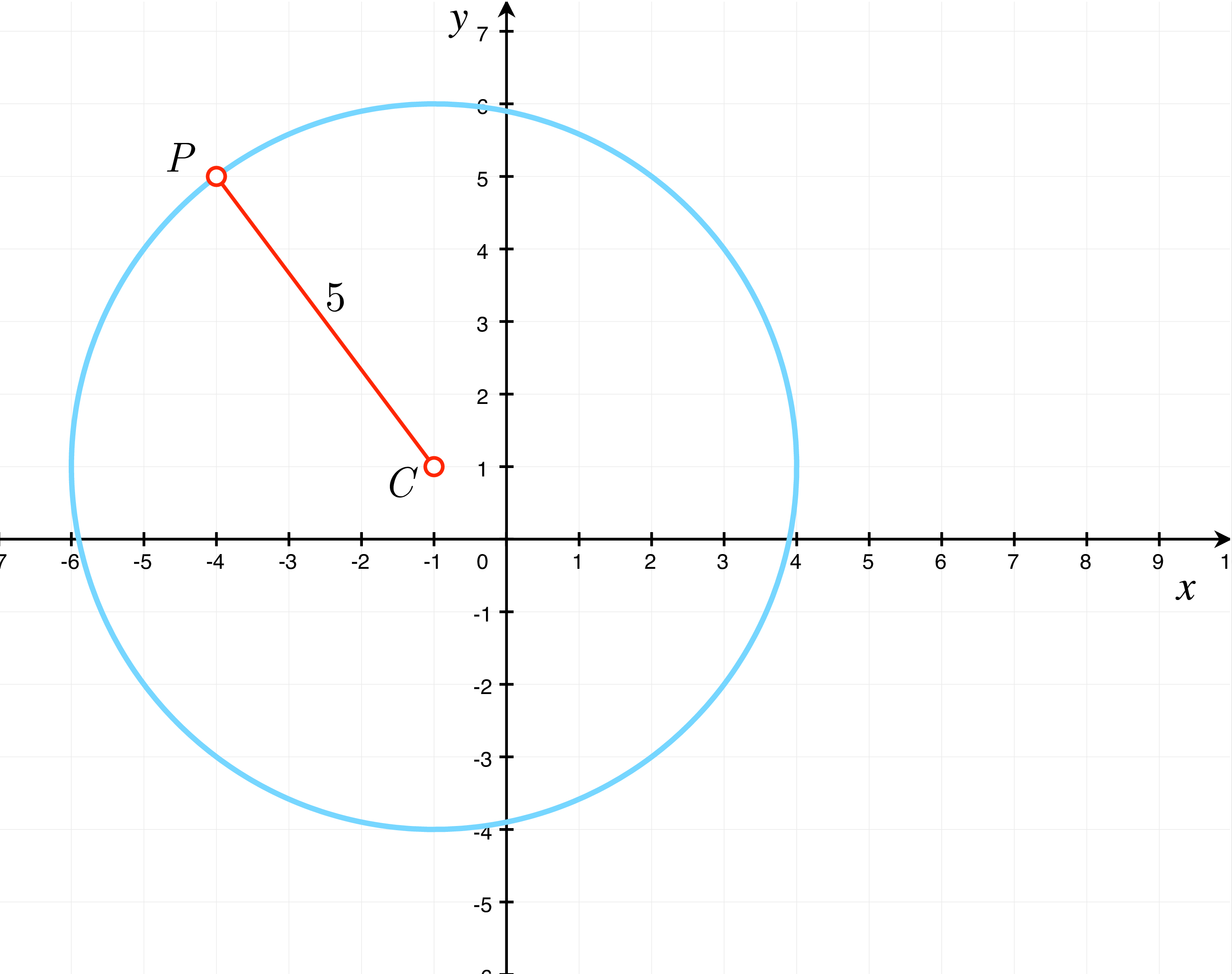

Graph of the circle (x + 1)² + (y − 1)² = 25, centered at (−1, 1) with radius 5. — Graph of $(x + 1)^{2} + (y - 1)^{2} = 25$

General Form of a Circle

Starting from the standard form of a circle with radius 2 and center $(2, - 3)$ :

(x - 2)^{2} + (y + 3)^{2} = 4.

Expanding the left side and simplifying:

\begin{aligned} x^2 - 4x + 4 + y^2 + 6y + 9 &= 4 \\ x^2 + y^2 - 4x + 6y + 9 &= 0. \end{aligned}

This expanded form is called the general form of the circle equation.

General Form of the Equation of a Circle

x^{2} + y^{2} + A x + B y + E = 0

provided that ${(\frac{A}{2})}^{2} + {(\frac{B}{2})}^{2} - E > 0$ .

The condition ensures the right-hand side of the standard form is positive (i.e., a valid radius squared).

Finding Center and Radius by Completing the Square

To convert the general form to standard form, use the technique of completing the square. Here is the procedure:

Steps to Convert General Form to Standard Form

Group terms: Move the constant to the right and group the $x$ - and $y$ -terms: $x^{2} + y^{2} + A x + B y + E = 0 ⟹ (x^{2} + A x) + (y^{2} + B y) = - E$
Complete the square for each group by adding the square of half the linear coefficient to both sides:
- For $x$ : add ${(\frac{A}{2})}^{2}$ , so $x^{2} + A x = {(x + \frac{A}{2})}^{2} - {(\frac{A}{2})}^{2}$ .
- For $y$ : add ${(\frac{B}{2})}^{2}$ , so $y^{2} + B y = {(y + \frac{B}{2})}^{2} - {(\frac{B}{2})}^{2}$ .
Rewrite in standard form: ${(x + \frac{A}{2})}^{2} + {(y + \frac{B}{2})}^{2} = {(\frac{A}{2})}^{2} + {(\frac{B}{2})}^{2} - E$
Identify center and radius:
- Center: $(- \frac{A}{2}, - \frac{B}{2})$
- Radius: $R = \sqrt{{(\frac{A}{2})}^{2} + {(\frac{B}{2})}^{2} - E}$

Worked Examples

Example 2. Find the center and radius of the circle:

x^{2} + y^{2} - 12 x + 14 y + 69 = 0.

Solution. Group and move the constant to the right:

(x^{2} - 12 x) + (y^{2} + 14 y) = - 69.

Complete the square for each variable. For $x^{2} - 12 x$ , add ${(\frac{- 12}{2})}^{2} = 36$ . For $y^{2} + 14 y$ , add ${(\frac{14}{2})}^{2} = 49$ . Add 36 and 49 to both sides:

\begin{aligned} (x^2 - 12x + 36) + (y^2 + 14y + 49) &= -69 + 36 + 49 \\ (x-6)^2 + (y+7)^2 &= 16 \\ (x-6)^2 + (y-(-7))^2 &= 4^2. \end{aligned}

The center is $(6, - 7)$ and the radius is $4$.

Example 3. Show that $x^{2} + y^{2} + 4 x - 6 y + 9 = 0$ represents a circle, and find its center and radius.

Solution. Group and move the constant to the right:

(x^{2} + 4 x) + (y^{2} - 6 y) = - 9.

Complete the square: for $x^{2} + 4 x$ add ${(\frac{4}{2})}^{2} = 4$ ; for $y^{2} - 6 y$ add ${(\frac{- 6}{2})}^{2} = 9$ . Add 4 and 9 to both sides:

\begin{aligned} (x^2 + 4x + 4) + (y^2 - 6y + 9) &= -9 + 4 + 9 \\ (x+2)^2 + (y-3)^2 &= 4. \end{aligned}

Since the right-hand side is positive, this is indeed a circle. The center is $(- 2, 3)$ and the radius is $R = 2$ .

Frequently Asked Questions

What is the graph of an equation?

The graph of an equation in two variables is the set of all points $(x, y)$ whose coordinates satisfy the equation. For example, the graph of $y = x^{2}$ is a parabola because every point on the parabola, such as $(2, 4)$ or $(- 3, 9)$ , satisfies $y = x^{2}$ , and no other points do.

What is the standard form of a circle equation?

The standard form of a circle with center

(a, b)

and radius

R

is:

(x - a)^{2} + (y - b)^{2} = R^{2}

This form is convenient because you can read off the center and radius directly. For example,

(x - 3)^{2} + (y + 1)^{2} = 25

has center

(3, - 1)

and radius $5$.

What is the difference between the standard form and the general form of a circle?

The standard form

(x - a)^{2} + (y - b)^{2} = R^{2}

makes the center and radius immediately visible. The general form

x^{2} + y^{2} + A x + B y + E = 0

is the expanded version, where the center and radius are not obvious. To find the center and radius from the general form, complete the square on the

x

- and

y

-terms to convert it back to standard form.

How do I complete the square for a circle equation?

To complete the square for an expression like

x^{2} + A x

, take half the coefficient of

x

, square it, and add it to both sides of the equation:

x^{2} + A x + {(\frac{A}{2})}^{2} = {(x + \frac{A}{2})}^{2}

Repeat for the

y

-terms. The result is the standard form of the circle, from which you can identify the center and radius directly.

What does the condition

(A / 2)^{2} + (B / 2)^{2} - E > 0

mean?

In the general form

x^{2} + y^{2} + A x + B y + E = 0

, after completing the square the right-hand side of the standard form equals

{(\frac{A}{2})}^{2} + {(\frac{B}{2})}^{2} - E

. This must be strictly positive for the equation to represent a real circle with positive radius. If this expression equals zero, the "circle" degenerates to a single point. If it is negative, there are no real points satisfying the equation.
